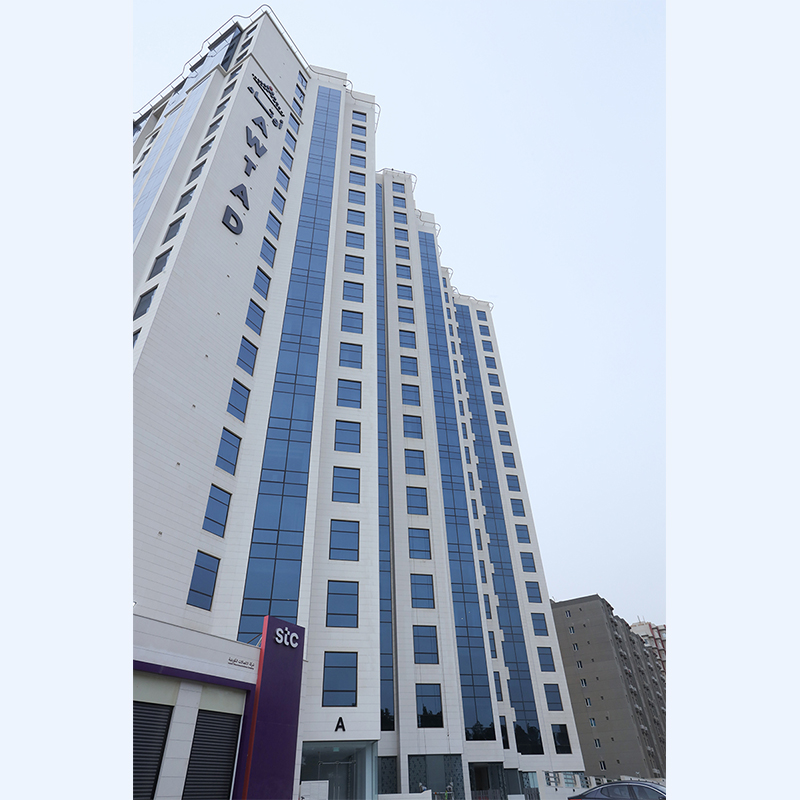

Awtad Tower Mahboula
Awtad Tower is a 19-storey seafront development in Mahboula, featuring premium residential apartments with sea views and a range of specialized medical clinics.
Scope of Work
Design, fabrication, and installation of 6,000 sqm of aluminium structural glazed curtain walls, 720 concealed windows, lobby skylight, and doors and windows. Tight access at certain locations, especially on upper floors, requiring high utilization of installation cradles.

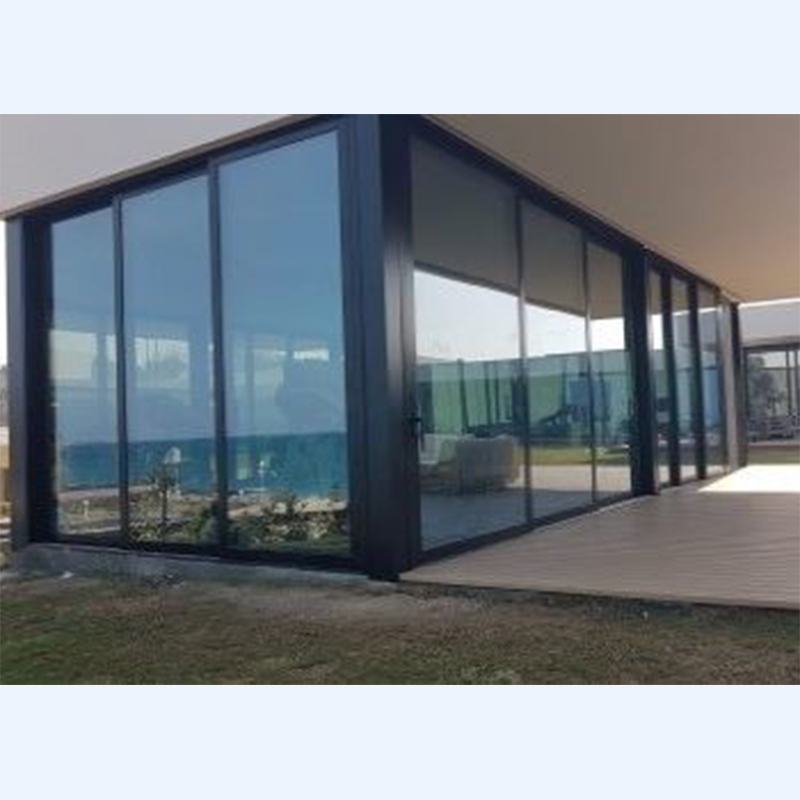

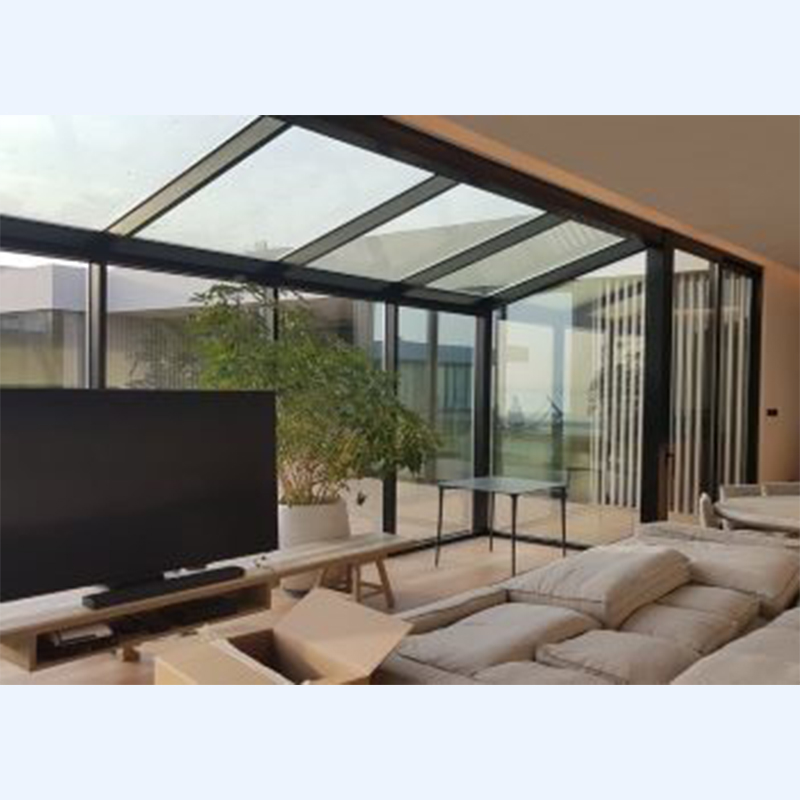

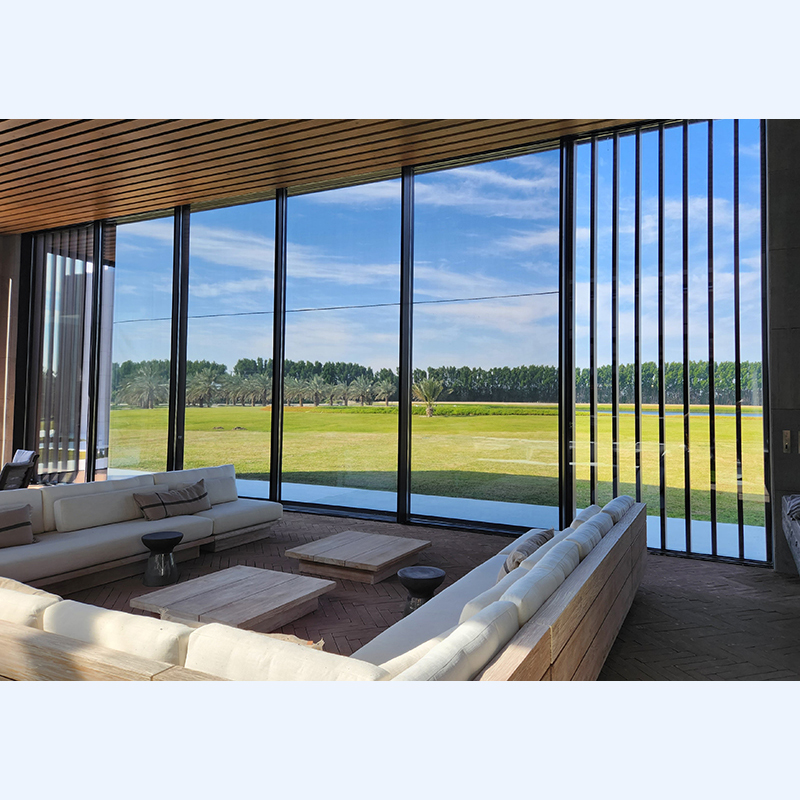

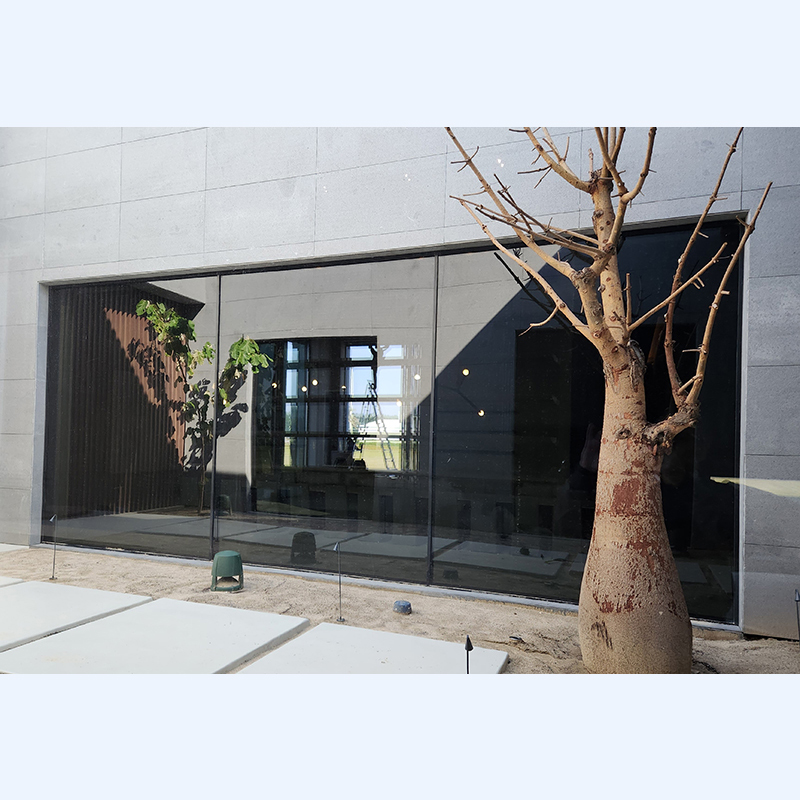

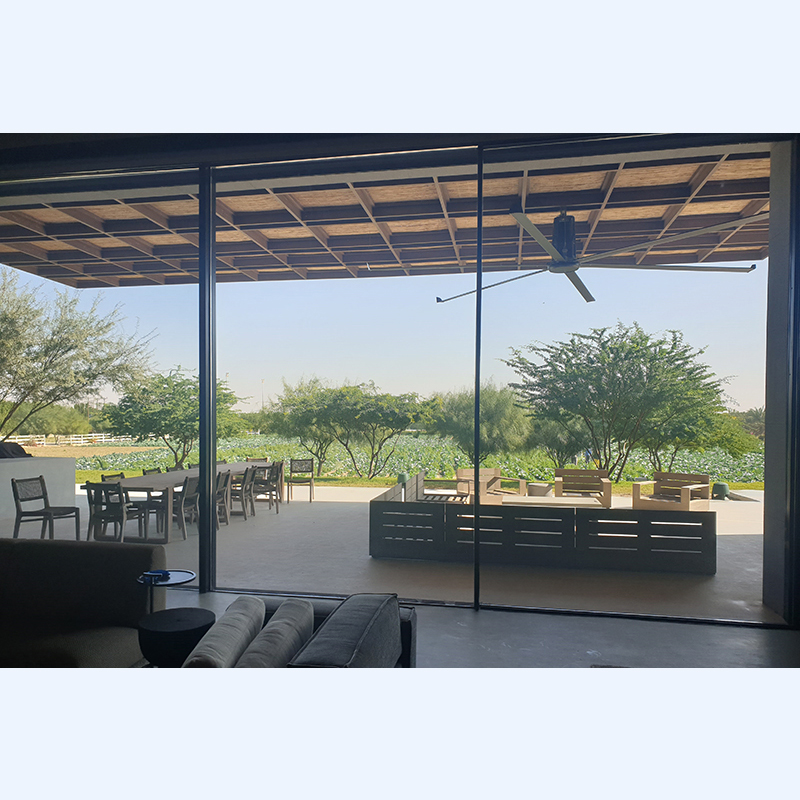

Wafra Farm & Bnaider Chalet
This high-end VIP farm villa spans over 900,000 sqm, combining extensive landscaped areas, entertainment facilities, large-scale agricultural concepts, and distinctive architectural design features.
Scope of Work

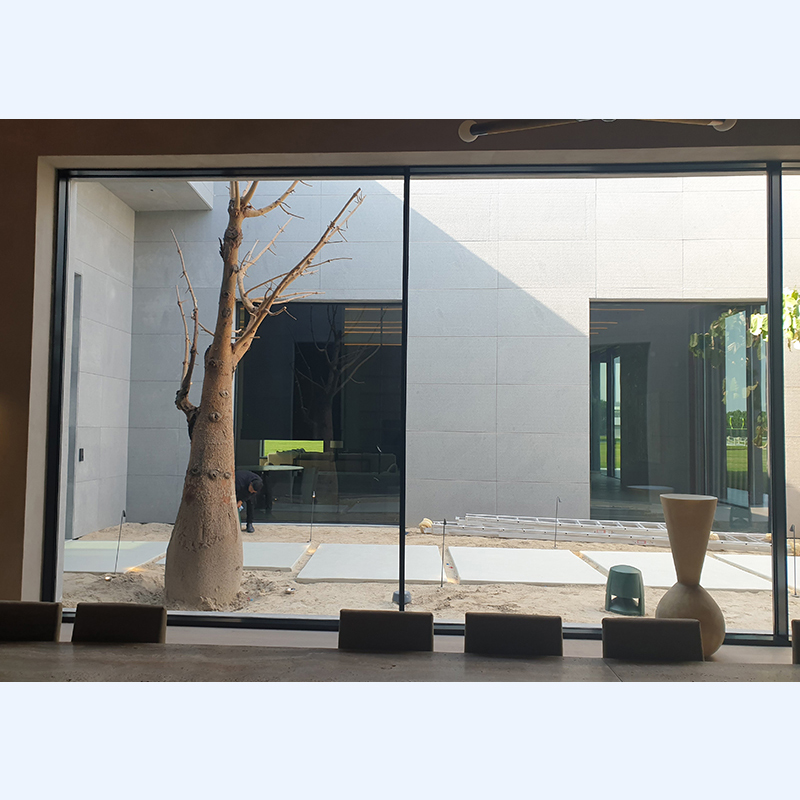

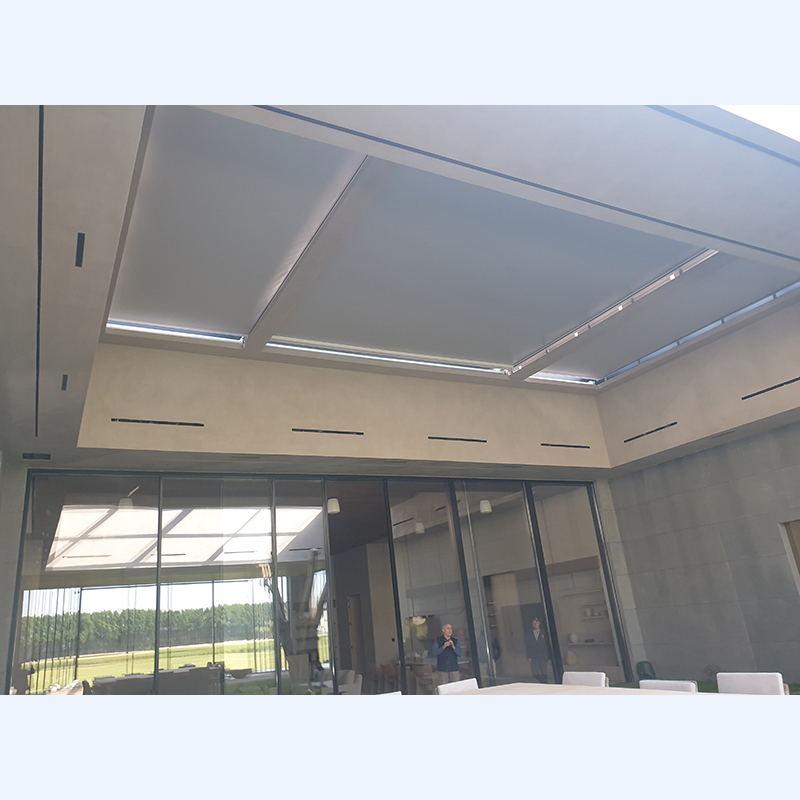

Installation of minimal sliding doors (up to 3 m width × 5 m height, manual and motorized), motorized skylights (6 m × 6 m) with horizontal blackout and flyscreens, 65 units of mega-sized flyscreens and blackouts (up to 10 m × 5 m, single motorized pieces), lift & slide doors, decorative casement doors, using triple-glass high-performance jumbo units. Handling large sliding panels (3 m × 5 m, triple glazing, 700–1,000 kg), requiring special lifting equipment imported from Germany to ensure product and worker safety.

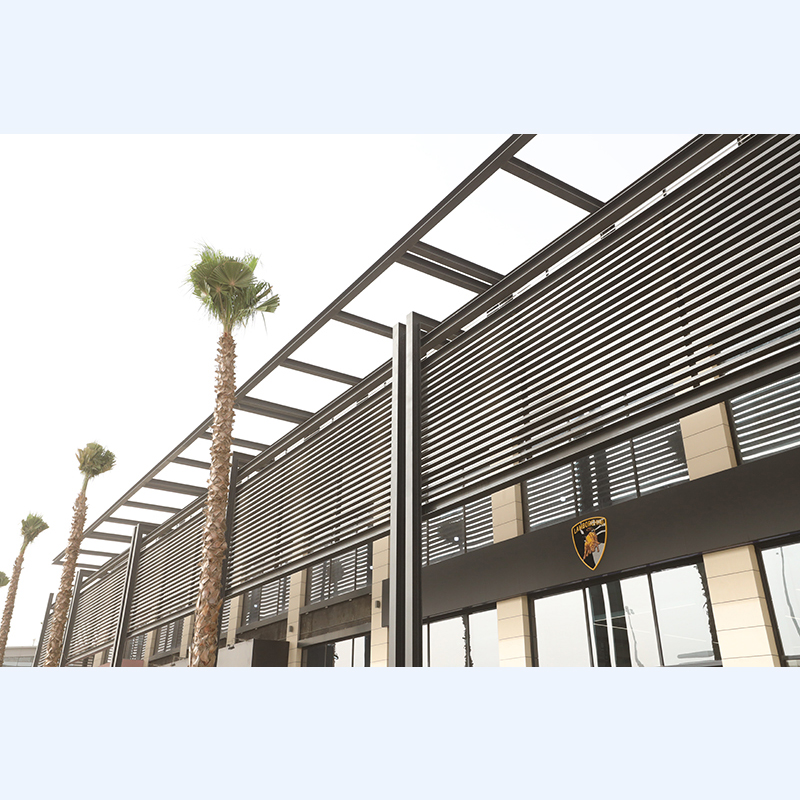

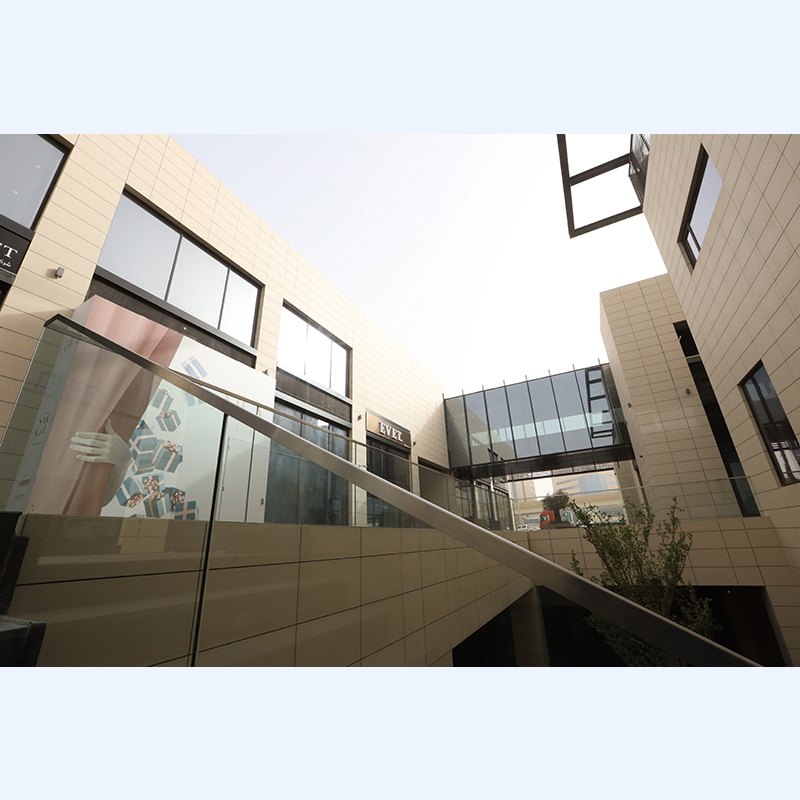

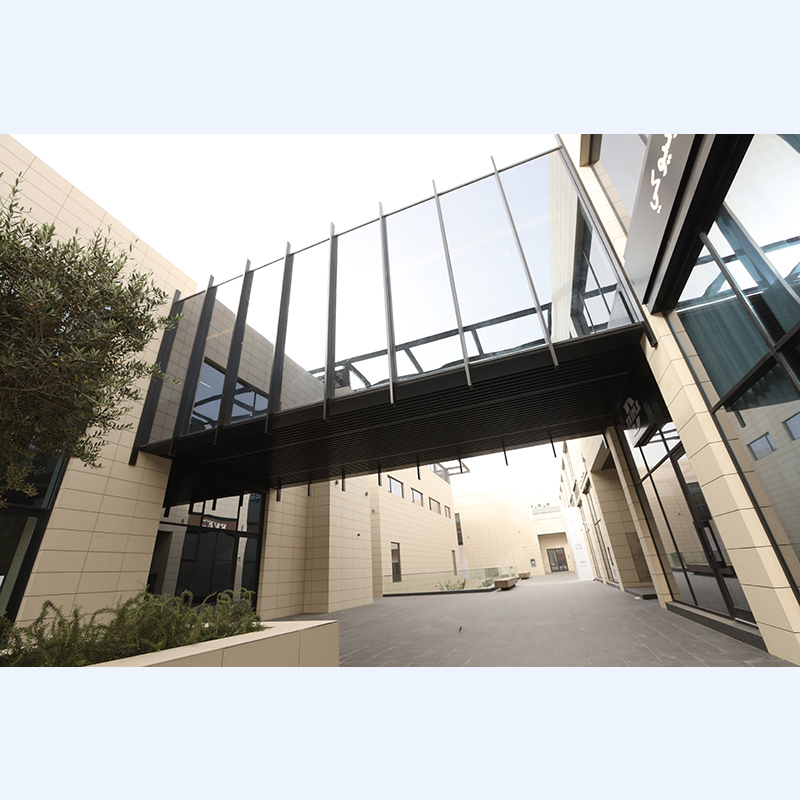

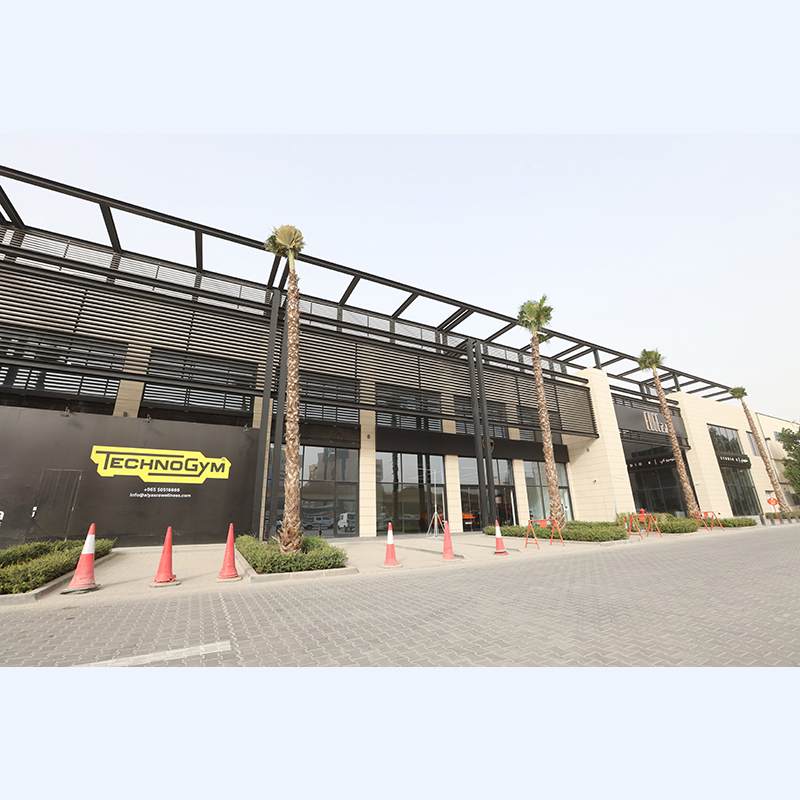

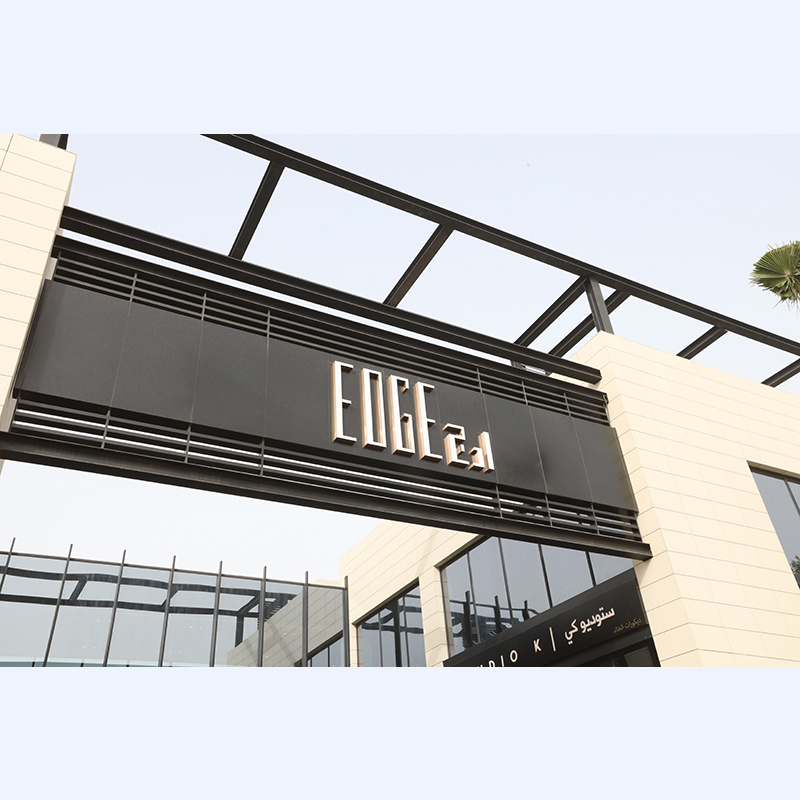

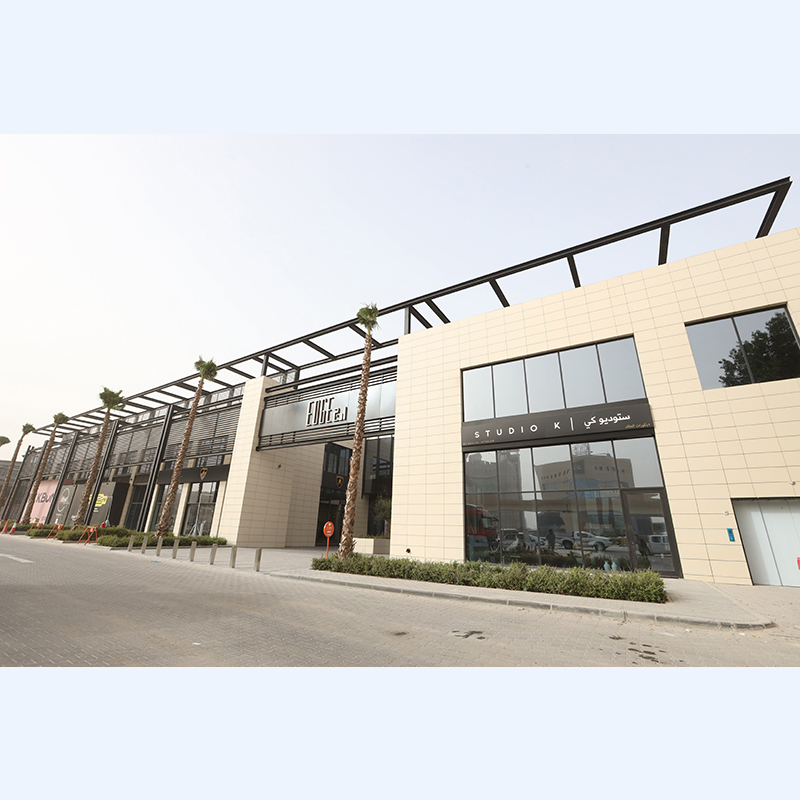

Edge Mall Shuwaikh
Edge Mall is a commercial center featuring distinctive architectural elements, including curtain walls, large aluminium louvers on a heavy steel structure, connecting bridges, and a ceramic ventilated façade system.
Scope of Work
Design, fabrication, and installation of 2,000 sqm of curtain walls, 70 shop entrance doors, 70 decorative bathroom doors, 8 automatic sliding doors with special aluminium frames, 4,000 sqm of Frontec ceramic ventilated façade cladding, 32 jumbo glass panels for bridges, large horizontal louvers, and ceiling cladding for lobbies and entrances. Introduction of multiple new products into Ahlia Aluminium’s supply chain, successfully executed to fully meet the client’s requirements and satisfaction.

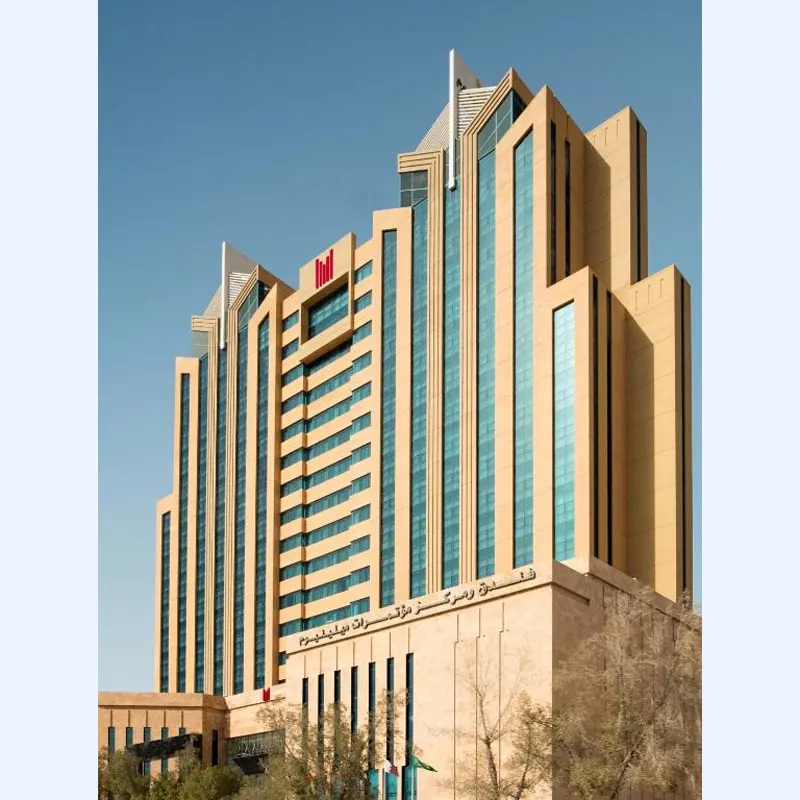

Millennium Hotel & Convention Centre
Millennium Hotel and Convention Centre is a 18-storey development located at the crossroads of Kuwait’s 30th and 5th Ring Roads, distinguished by its unique architectural concept.
Scope of Work
Structural glazed curtain walls, central Spider curtain wall, decorative louvers, automatic circular doors, automatic swing doors, and standard doors and windows. Spider Façade at entrance lobby of full height 16m with SS Tension Rods system, and spider façade at roof top restaurant of size 15m x 10m with glass fins support, whistanding a wind load of about 2KPA
Ahmadi Showrooms
Retail showrooms located in the center of Ahmadi commercial area, with internal and external courts as well as skylights at stairs entrances
Scope of Work
Conventional curtain walls, skylights, windows, and doors. The design was simple, but executing the works at high speed while maintaining very high quality using local system curtain walls, windows, and doors was challenging. The result was fully satisfactory.National Bank of Kuwait (NBK) Branches
NBK branches across Kuwait are characterized by their distinctive 3D fin canopies, designed to complement and shade the structural glazed curtain walls.
Scope of Work
Design, fabrication, and installation of aluminium structural glazed curtain walls, windows, doors, and a specially rendered 3D canopy. High technical skill was required to realize the 3D intent of the canopy, which was successfully executed.

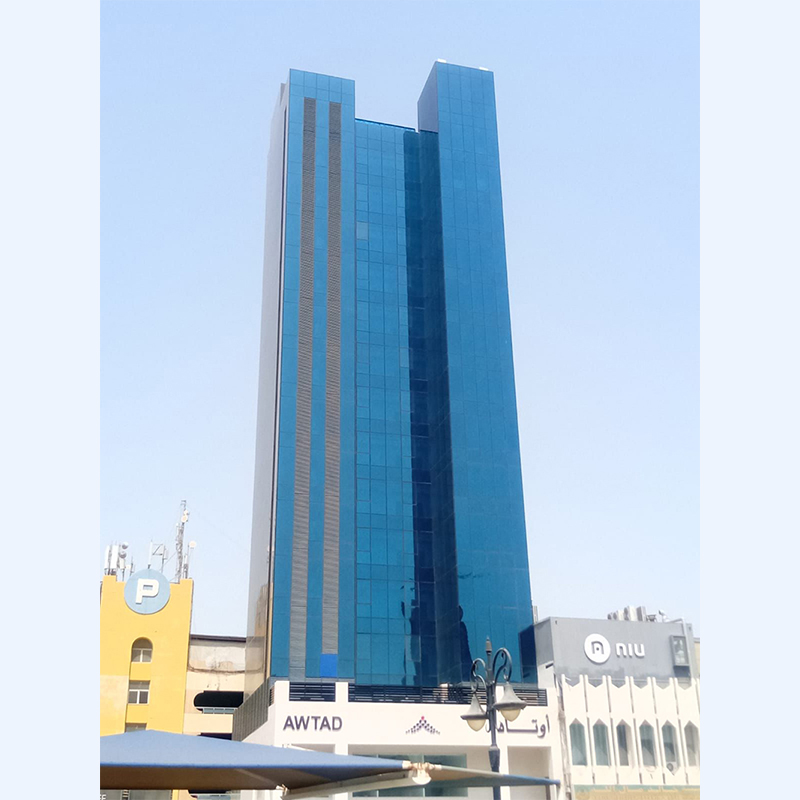

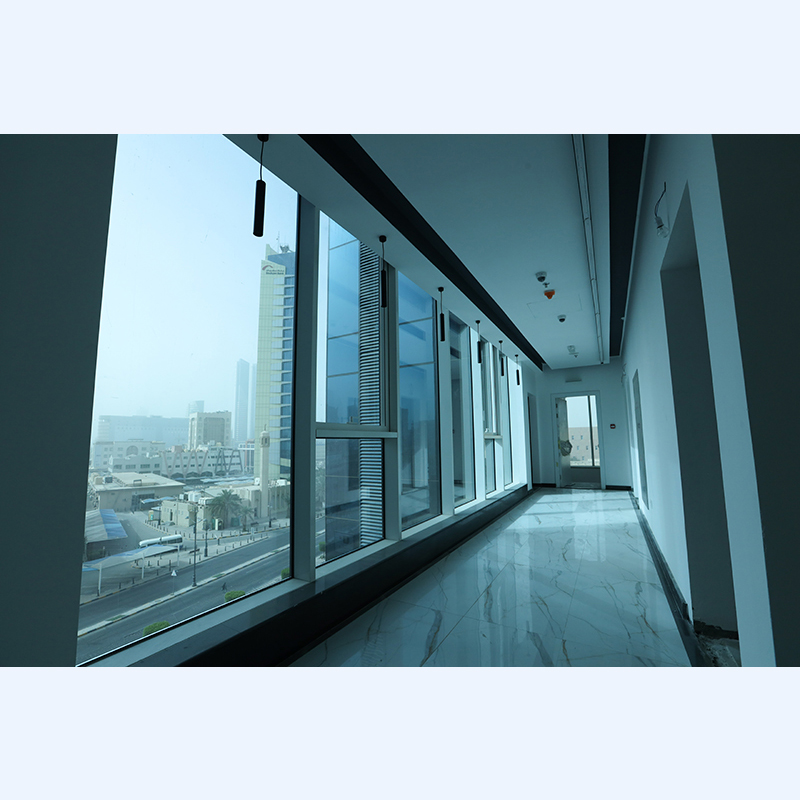

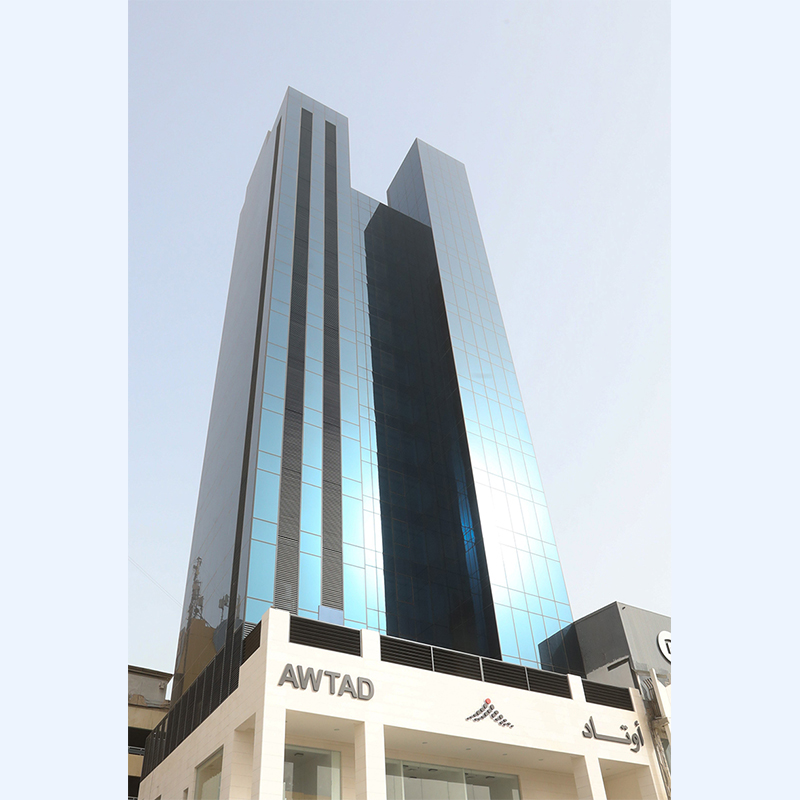

Awtad Tower - Qibla
Awtad Tower in Qibla is a luxury office building located across from Kuwait’s old souks, featuring an all-glass façade with 270-degree views.
Scope of Work
Design, fabrication, and installation of 3,000 sqm of structural glazed curtain walls with operable concealed windows; full-height floor-to-floor glass up to 1.5 m width with 8 mm external panes. Includes internal doors and louvers for mechanical floors. Extreme material wastage due to post-COVID non-availability of raw materials in varying sizes required close coordination with suppliers to optimize cutting lists. Achieving near-zero glass distortion added additional complexity, which was successfully resolved.

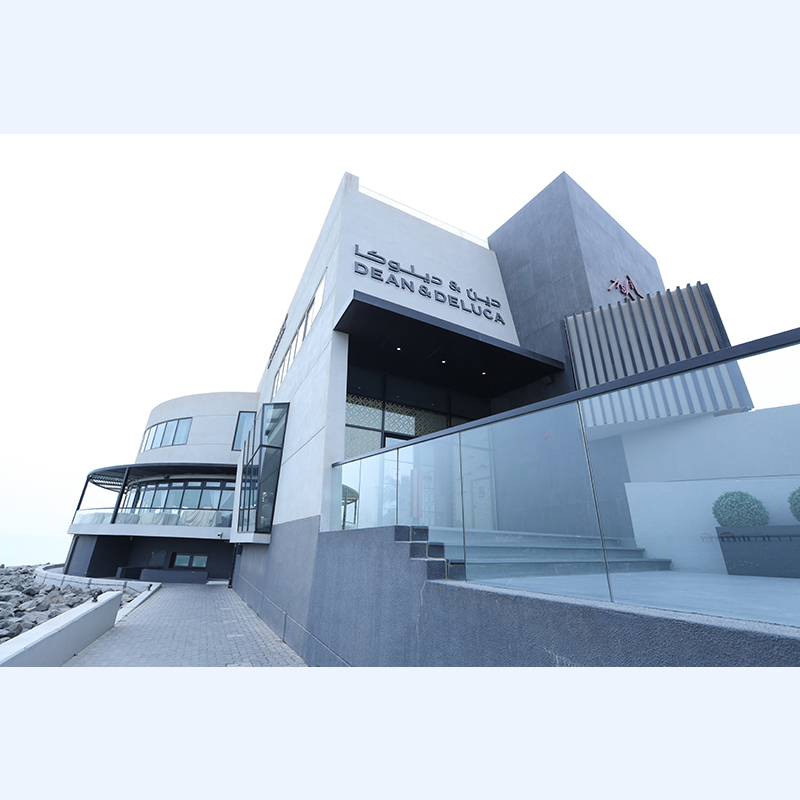

Dean & Deluca
Dean & Deluca is a premium restaurant located on the seafront, featuring a distinctive façade design and a refined interior.
Scope of Work

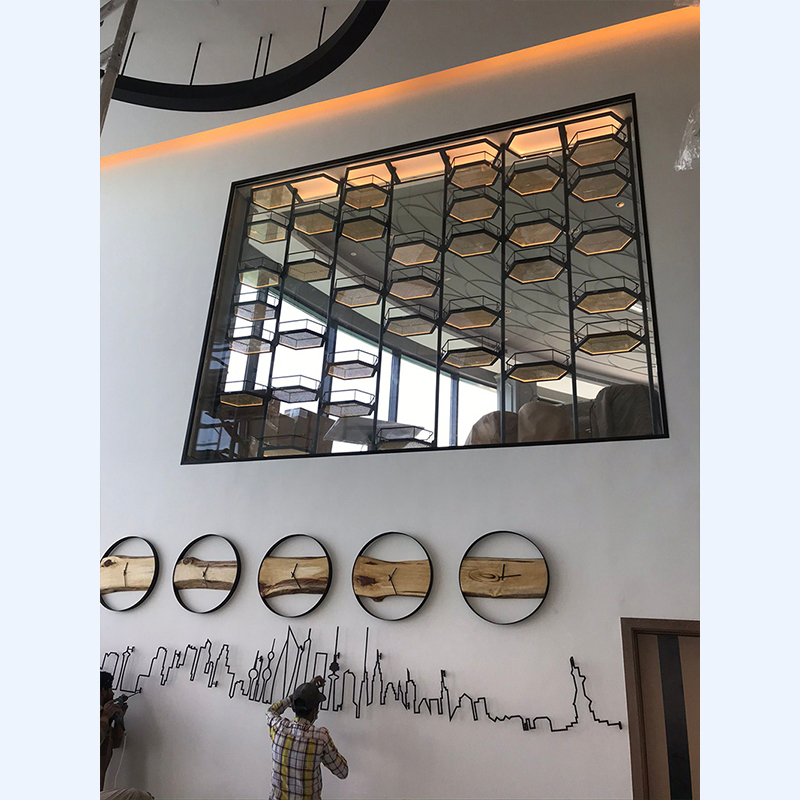

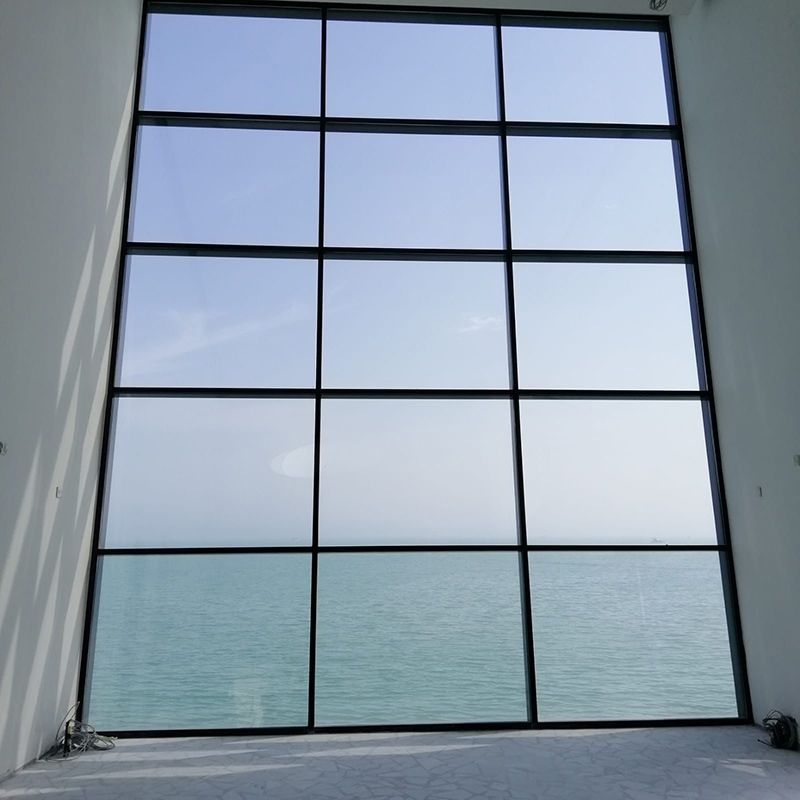

Curtain walls, jumbo skylight, internal 3 × 5 m jumbo glass panels, and segmented curtain walls. Inclined curtain walls required reverse installation (cover caps and pressure plates on the inside), posing major concerns for wind load on the glass. A special fixation method was devised to meet the design intent.

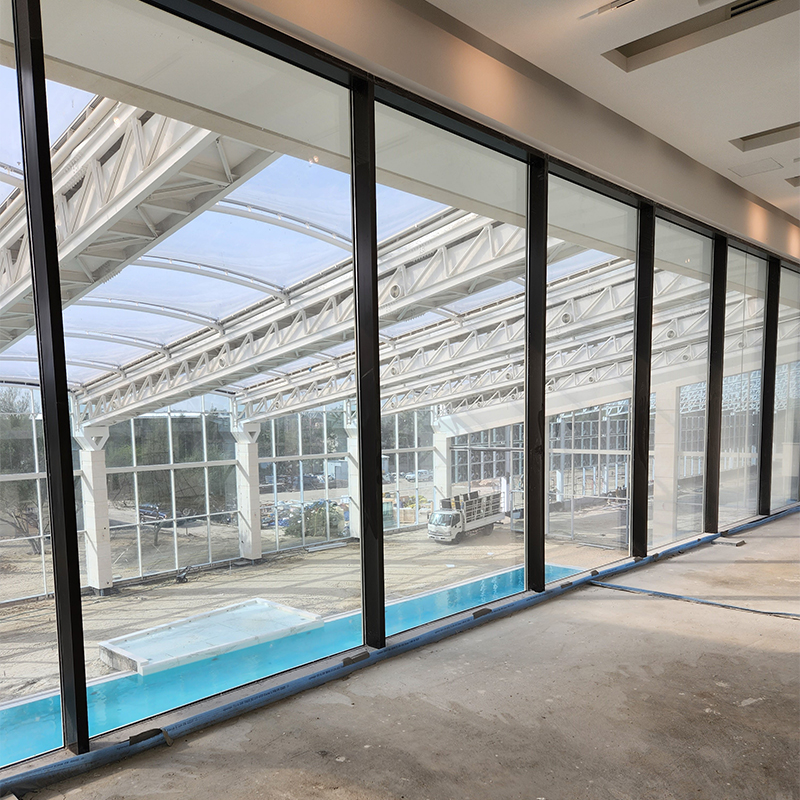

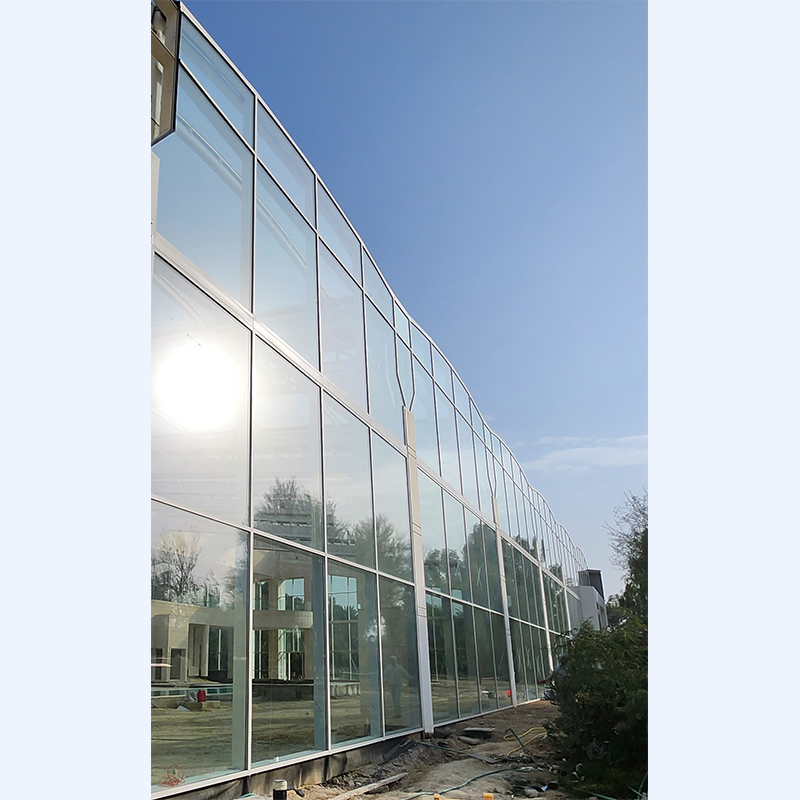

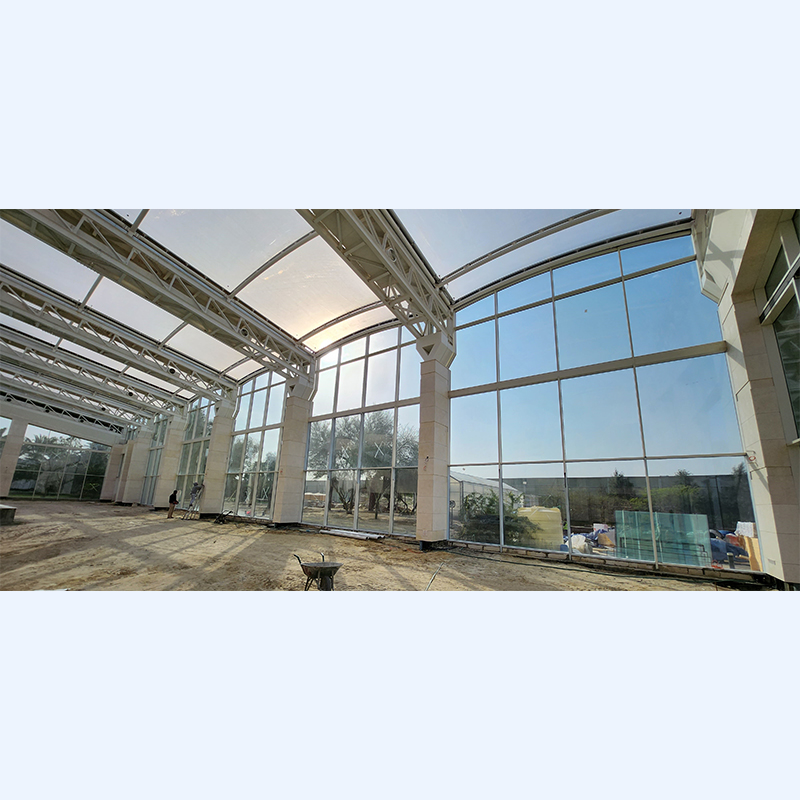

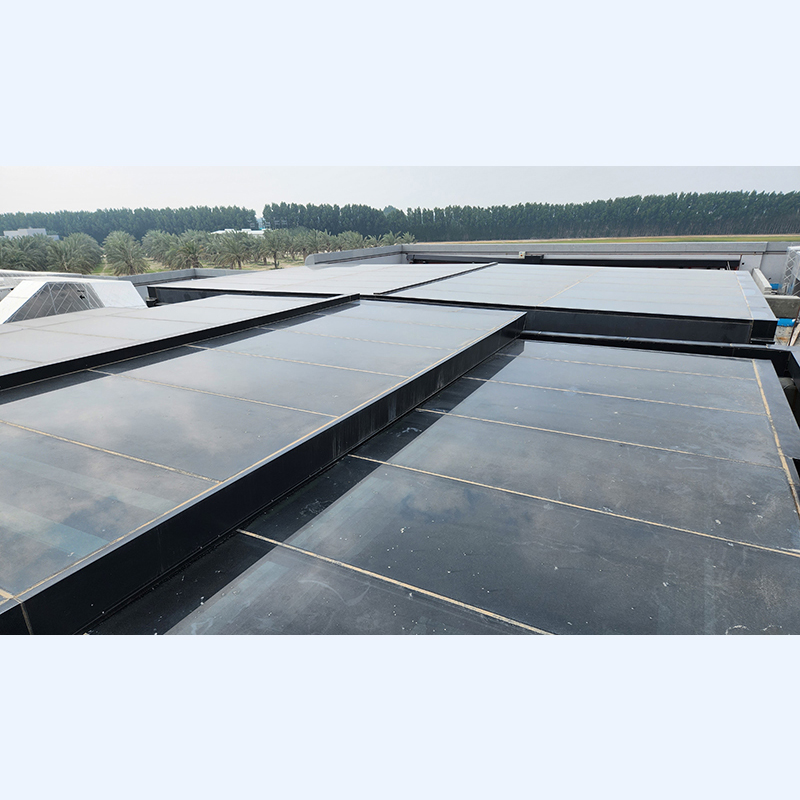

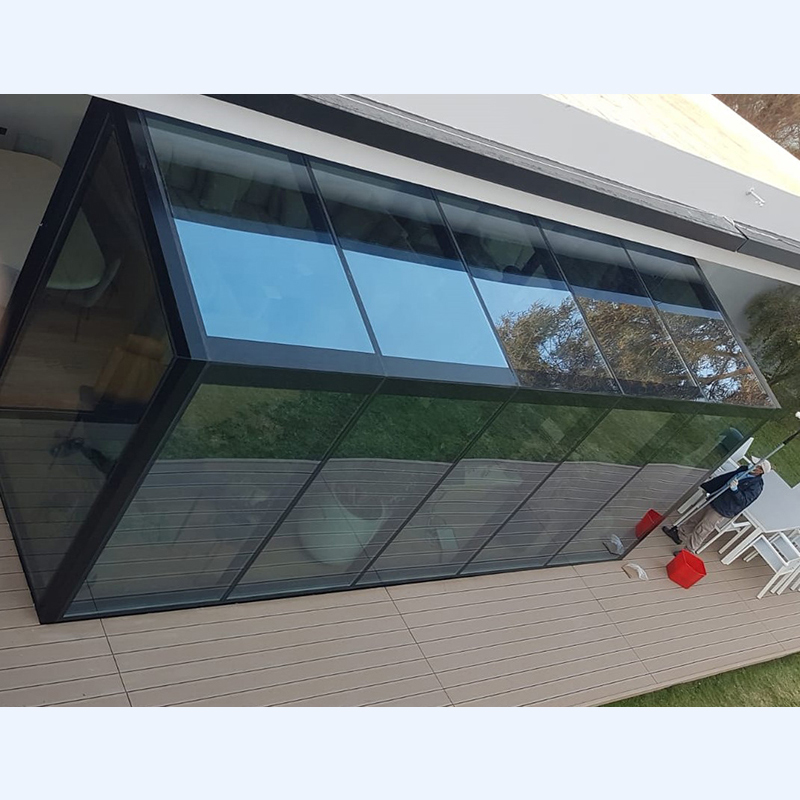

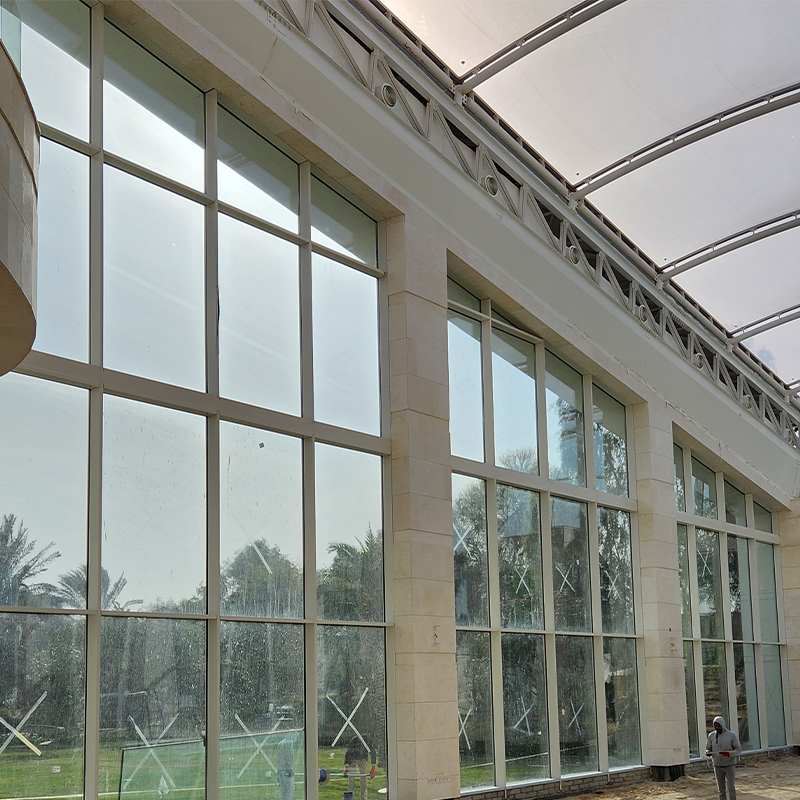

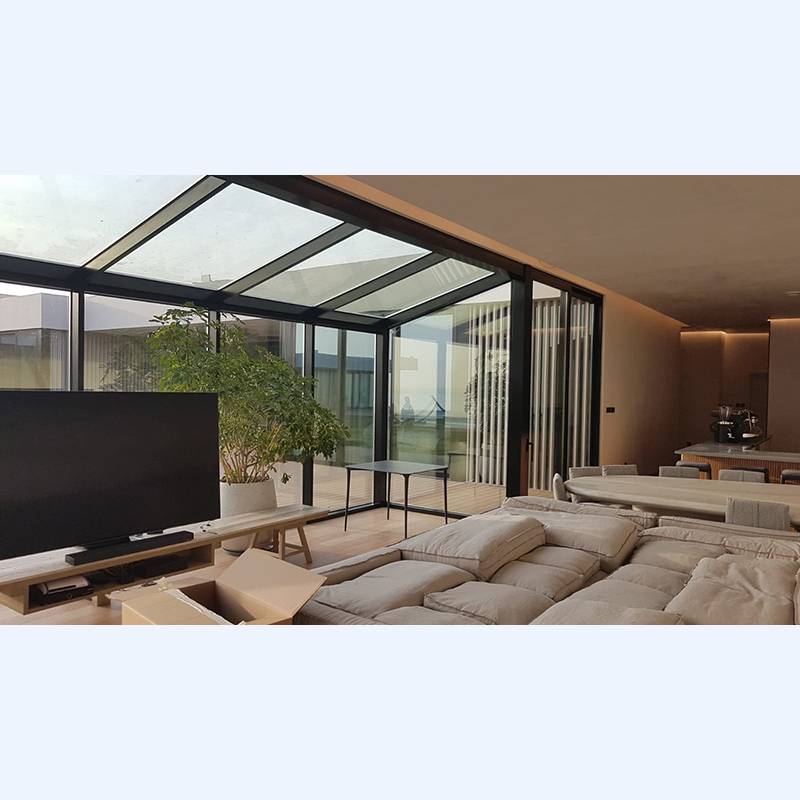

Wafra Farmhouse Pool Enclosure, Extension Villa and Greenhouse
Private Wafra farmhouse is a premium residence featuring a distinctive design with a swimming pool roof cover and glazed curtain wall enclosures.
